Products with ELD "c3ac23"
Below you will find a list of products with the ELD "C3ac23" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

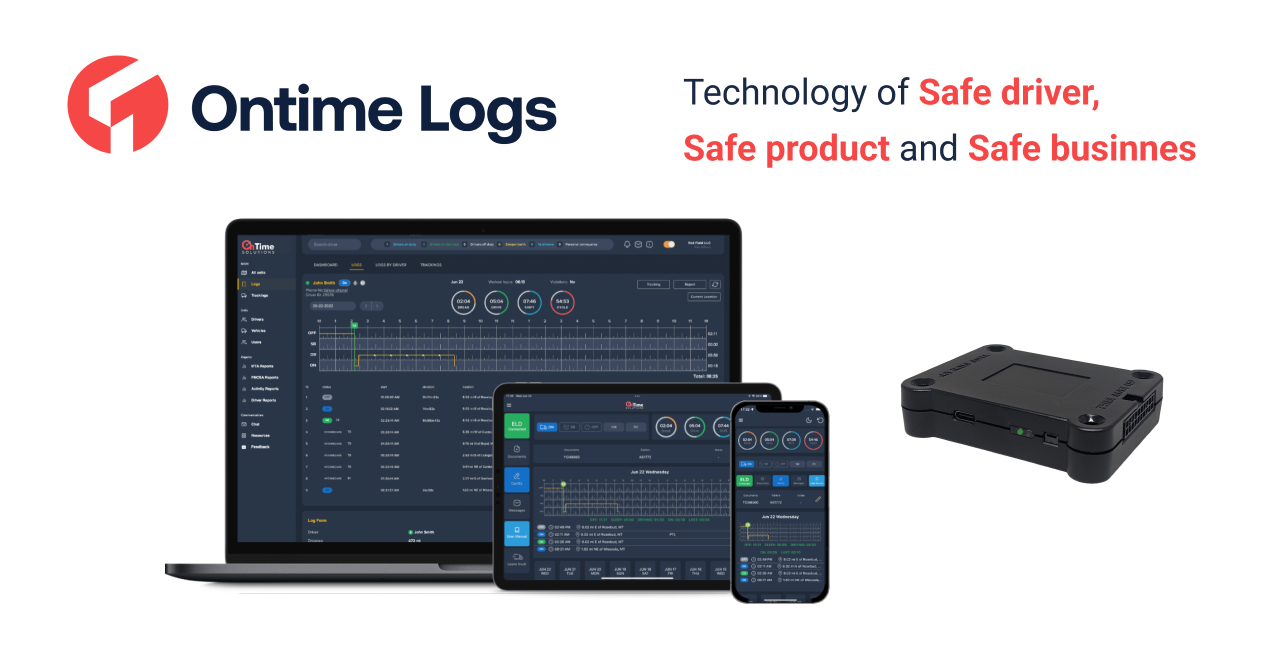

Ontime Logs PT
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Ontime Logs PT | OTL100 | 1.0.0 |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
Select the "Menu" icon in the top left corner and press "Inspection". In the pop-up menu, choose "Send ELD Output File to DOT" to send your electronic logbook data to the DOT. You are provided with 2 options as radio buttons: "Web service" or "Email". You may write comment down below after selecting necessary option. Finally, press the "Send" button as you finish filling out the form.Certification Statement
The Ontime Logs efficiently verifies compliance to technical standards and detects any malfunctions or inaccuracies in data on time. It momentarily records all detected malfunctions and diagnostic events. Standard coding practices are utilized to identify compliance-related malfunctions and diagnose data events: P for "Power compliance" issues, E for "Engine synchronization compliance" issues, T for "Timing compliance" issues, L for "Positioning compliance" issues, R for "Data recording compliance" issues, S for "Data transfer compliance" issues, O for other ELD-detected malfunctions, and numbers 1 through 6 for various data diagnostic events. These include: 1 - "Power data diagnostic" event, 2 - "Engine synchronization data diagnostic" event, 3 - "Missing required data elements data diagnostic" event, 4 - "Data transfer data diagnostic" event, 5 - "Unidentified driving records data diagnostic" event, and 6 - "Other" ELD-identified diagnostic events. The Ontime Logs Malfunction and Diagnostic Event Records offer in-depth information regarding any ELD malfunctions identified throughout a specified time period. Drivers are promptly notified of active malfunctions via the Ontime Logs system.
User Manual:
usermanual.pdf
Ontime Logs PT
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Ontime Logs PT | OTL100 | 1.2.6 and higher |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
Select the "Menu" icon in the top left corner and press "Inspection". In the pop-up menu, choose "Send ELD Output File to DOT" to send your electronic logbook data to the DOT. You are provided with 2 options as radio buttons: "Web service" or "Email". You may write comment down below after selecting necessary option. Finally, press the "Send" button as you finish filling out the form.Certification Statement
The Ontime Logs efficiently verifies compliance to technical standards and detects any malfunctions or inaccuracies in data on time. It momentarily records all detected malfunctions and diagnostic events. Standard coding practices are utilized to identify compliance-related malfunctions and diagnose data events: P for "Power compliance" issues, E for "Engine synchronization compliance" issues, T for "Timing compliance" issues, L for "Positioning compliance" issues, R for "Data recording compliance" issues, S for "Data transfer compliance" issues, O for other ELD-detected malfunctions, and numbers 1 through 6 for various data diagnostic events. These include: 1 - "Power data diagnostic" event, 2 - "Engine synchronization data diagnostic" event, 3 - "Missing required data elements data diagnostic" event, 4 - "Data transfer data diagnostic" event, 5 - "Unidentified driving records data diagnostic" event, and 6 - "Other" ELD-identified diagnostic events. The Ontime Logs Malfunction and Diagnostic Event Records offer in-depth information regarding any ELD malfunctions identified throughout a specified time period. Drivers are promptly notified of active malfunctions via the Ontime Logs system.
User Manual: usermanual.pdf
