Products with ELD "TTN001"

Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

TN360 ELD

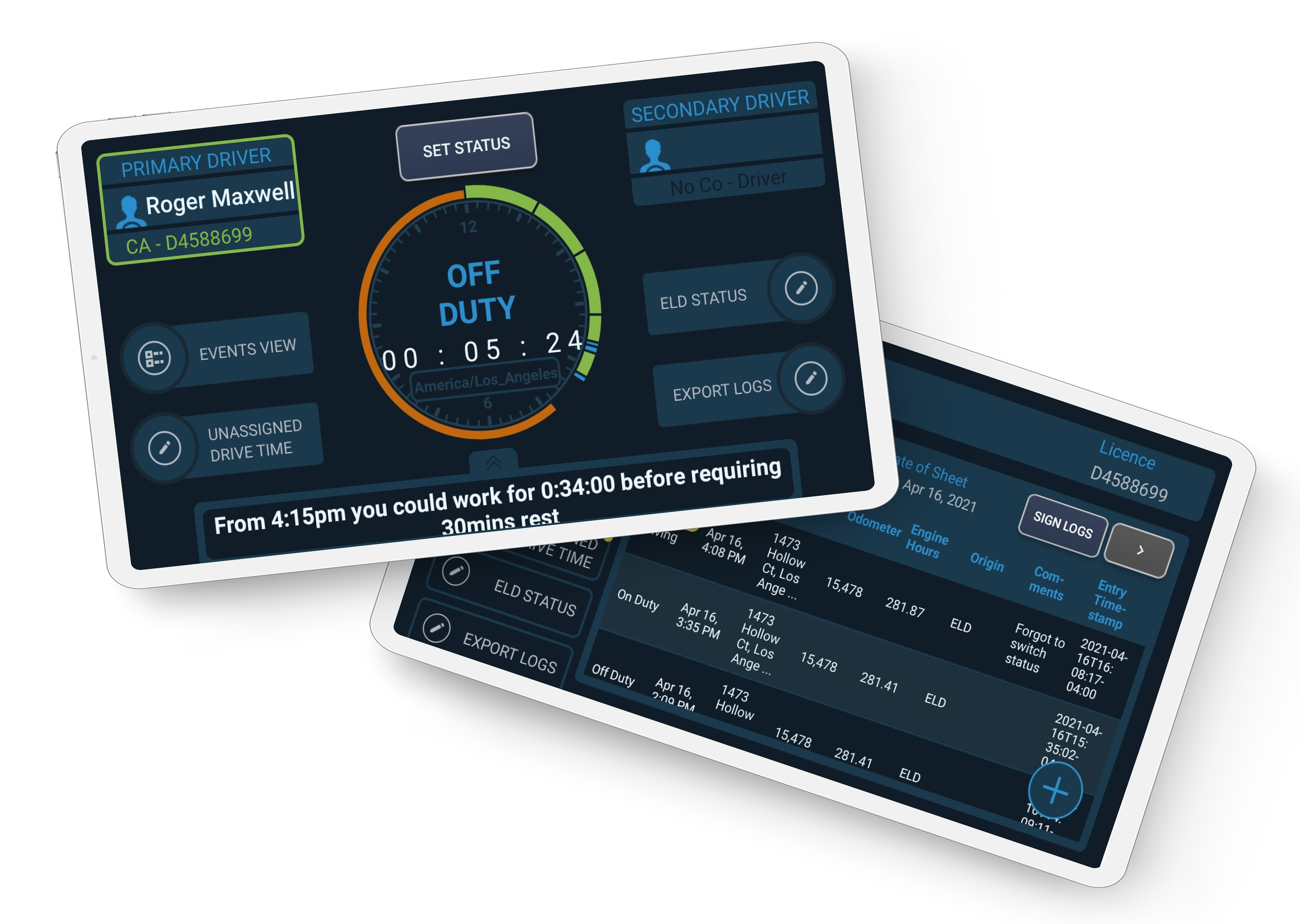

Product Image
Vendor Device Name Model Number Approved Version
Teletrac NavmanTN360 ELDAndroid OS Version 9 +1.3.8.50+

  • Data Transfer and Reporting Procedures

    > Local (USB, Bluetooth) , Telematic (Web Service, Email)

  • Malfunctions and Testing

    Instructions for DOT Officer and driver. This section explains officers how to access driver and vehicle information, including current and previous day log records. The ELD solution will support Option 1 - Wireless web and email View Drivers Logs ( 7 + current ) 1. From the home screen select events view tab 2. Scroll with the forward/back arrows to review log event information 3. Select Duty grid tab 4. Scroll with the forward/back arrows to review log event information View Unassigned Drive Time 1. From the home screen select Unassigned drive time tab 2. Scroll to and from recent associated events within tab Log transfer 1. Select the export logs button from the home screen 2. Select email or web service enter comment ( required ) then select Export or Cancel

  • Certification Statement

    Malfunction Event Codes Event Code Event Name Description P Power Malfunction Total engine hours error minutes while driving exceeded 30 minutes in 24 hours. E Engine Synchronization Malfunction Last EMS message received more than 30 minutes ago. T Timing Malfunction GPS time and system time difference more than 10 minutes. L Position Malfunction More than 60 minutes worth of invalid GPS positions received in last 24 hours. R Data Recording Malfunction Failed to save item to database. S Data Transfer Malfunction Message transfer observing problems for 3 consecutive days. ELD Diagnostic Event Codes Event Code Event Name Description 1 Power Diagnostic Total engine hours error minutes while driving exceeded 30 minutes in 24 Hours. 2 Engine Synchronization Diagnostic Last EMS message received more than 30 minutes ago. 3 Missing Data Elements Diagnostic GPS time and system time difference more than 10 minutes. 4 Data Transfer Diagnostic More than 60 minutes worth of invalid GPS positions received in last 24 Hours. 5 Unidentified Driver Diagnostic Failed to save item to database

User Manual: PDFSentinel-Guide-BETA-210819.pdf

TN360 ELD

Product Image
Vendor Device Name Model Number Approved Version
Teletrac NavmanTN360 ELDAndroid OS Version 9 +; iOS 12.0+1.3.8.50+;iOS 2.0.0+

  • Data Transfer and Reporting Procedures

    > Telematic (Web Service, Email)

  • Malfunctions and Testing

    We have employed the use of the FMCSA eRODS Web Service tool to verify the CSV file required to transfer to enforcement or DOT audits. Instructions for DOT Officer and driver. This section explains officers how to access driver and vehicle information, including current and previous day log records. The ELD solution will support Option 1 - Wireless web and email View Drivers Logs ( 7 + current ) 1. From the home screen select events view tab 2. Scroll with the forward/back arrows to review log event information 3. Select Duty grid tab 4. Scroll with the forward/back arrows to review log event information View Unassigned Drive Time 1. From the home screen select Unassigned drive time tab 2. Scroll to and from recent associated events within tab Log transfer 1. Select the export logs button from the home screen 2. Select email or web service enter comment ( required ) then select Export or Cancel

  • Certification Statement

    Malfunction Event Codes Event Code Event Name Description P Power Malfunction Total engine hours error minutes while driving exceeded 30 minutes in 24 hours. E Engine Synchronization Malfunction Last EMS message received more than 30 minutes ago. T Timing Malfunction GPS time and system time difference more than 10 minutes. L Position Malfunction More than 60 minutes worth of invalid GPS positions received in last 24 hours. R Data Recording Malfunction Failed to save item to database. S Data Transfer Malfunction Message transfer observing problems for 3 consecutive days. ELD Diagnostic Event Codes Event Code Event Name Description 1 Power Diagnostic Total engine hours error minutes while driving exceeded 30 minutes in 24 Hours. 2 Engine Synchronization Diagnostic Last EMS message received more than 30 minutes ago. 3 Missing Data Elements Diagnostic GPS time and system time difference more than 10 minutes. 4 Data Transfer Diagnostic More than 60 minutes worth of invalid GPS positions received in last 24 Hours. 5 Unidentified Driver Diagnostic Failed to save item to database

User Manual: PDFSentinel-Guide-BETA-210819.pdf
