Products with ELD "RRS121"
- RELIABLE-ELD Version 2.0 or higher
- RELIABLE-ELD Version 2.18.9 and up.
- RELIABLE-ELD Version 2.34 and up.
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

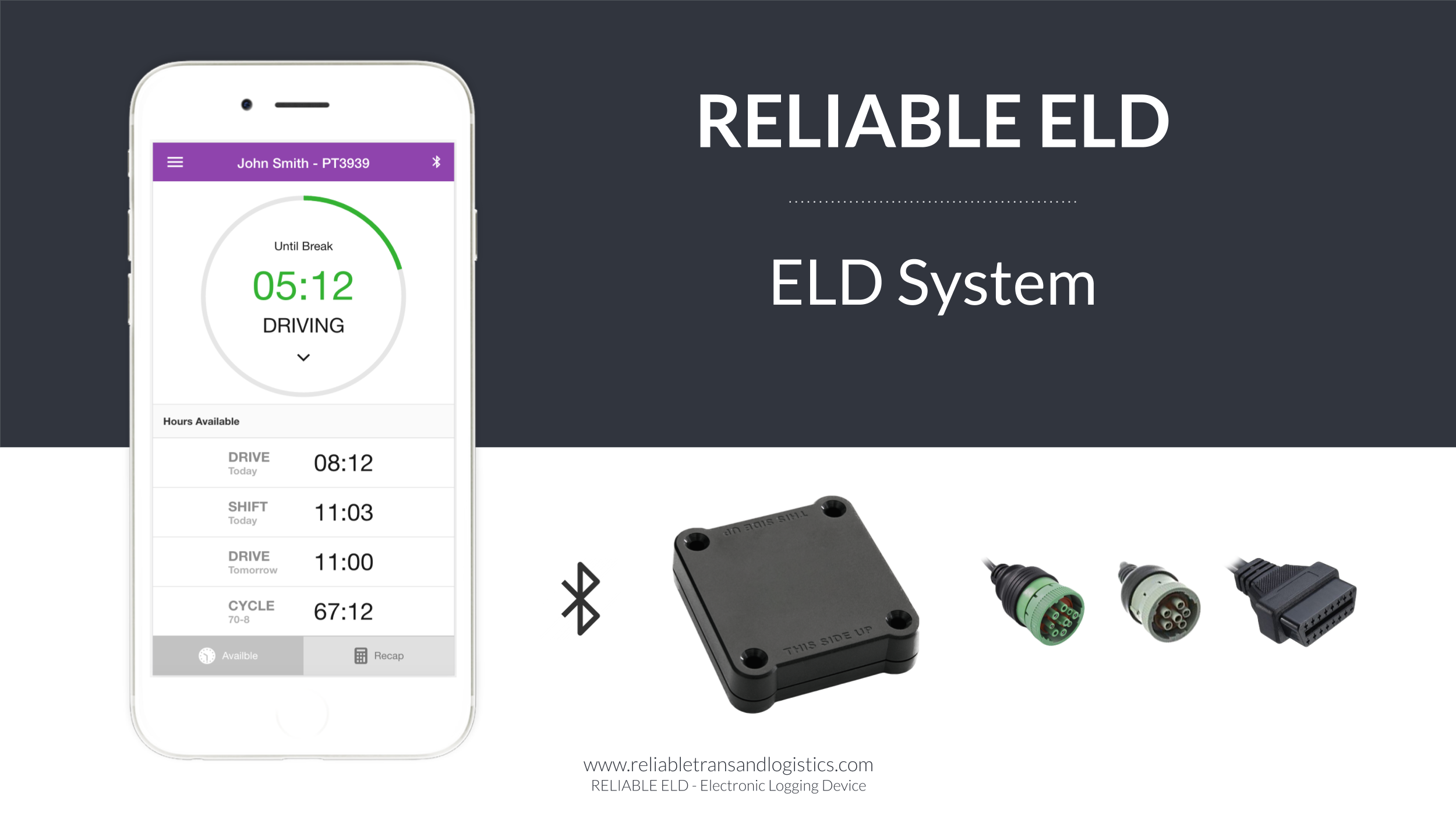

RELIABLE ELD
Vendor | Device Name | Model Number | Approved Version |
---|---|---|---|
Reliable ELD Inc | RELIABLE ELD | RRS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
RELIABLE ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
RELIABLE ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The RELIABLE ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on RELIABLE ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
RELIABLE ELD
Vendor | Device Name | Model Number | Approved Version |
---|---|---|---|
Reliable ELD Inc | RELIABLE ELD | RRS | 2.18.9 and up. |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
RELIABLE ELD users can transfer RODS through wireless web services or email, in accordance with Option 1 (Telematics Transfer methods) of Section 4.9.1 of Appendix A, Subpart B of title 49 of the Code of Federal Regulations, Part 395. Drivers can initiate a data transfer from the logbook app via the DOT Inspection Mode on the main menu. In case of a roadside inspection, the driver can hand their mobile device over to the officers, who can review the logs directly on the tablet or smartphone, or, if requested, the driver can quickly transfer HOS records via web services or email.Certification Statement
ELD system self-monitors for all appropriate malfunctions as specified in Appendix A section 4.6. Also, as required in section 4.6, when a malfunction is detected, it is reported as required in ELD data file(s) and visually indicated on the ELD system as required by 4.6.2.1. Malfunction procedures are listed in Malfunction Manual.
RELIABLE ELD
Vendor | Device Name | Model Number | Approved Version |
---|---|---|---|
Reliable ELD Inc | RELIABLE ELD | RRS | 2.34 and up. |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
RELIABLE ELD users can transfer RODS through wireless web services or email, in accordance with Option 1 (Telematics Transfer methods) of Section 4.9.1 of Appendix A, Subpart B of title 49 of the Code of Federal Regulations, Part 395. Drivers can initiate a data transfer from the logbook app via the DOT Inspection Mode on the main menu. In case of a roadside inspection, the driver can hand their mobile device over to the officers, who can review the logs directly on the tablet or smartphone, or, if requested, the driver can quickly transfer HOS records via web services or email.Certification Statement
ELD system self-monitors for all appropriate malfunctions as specified in Appendix A section 4.6. Also, as required in section 4.6, when a malfunction is detected, it is reported as required in ELD data file(s) and visually indicated on the ELD system as required by 4.6.2.1. Malfunction procedures are listed in Malfunction Manual.
