Products with ELD "RFS6T7"

Below you will find a list of products with the ELD "RFS6T7" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

1701 NCX ELD

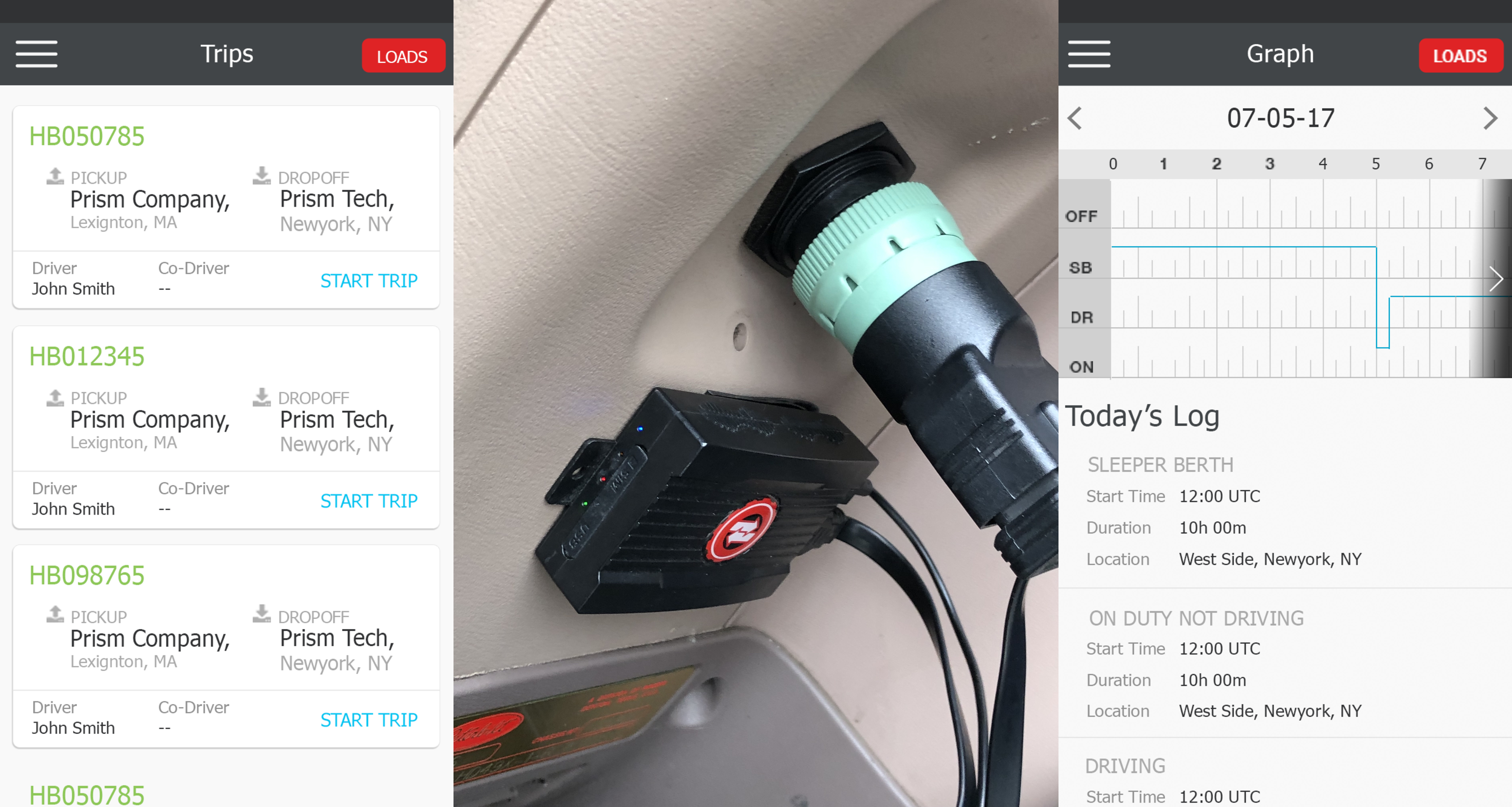

Product image for 1701 NCX ELD
Vendor Device Name Model Number Approved Version
National Carrier Exchange1701 NCX ELDNCX17012.3.1

  • Data Transfer and Reporting Procedures

    >

  • Malfunctions and Testing

    1. In the "My Log" page of the mobile application, select the "Transfer Logs" button. 2. Select the dates for the Logs you wish to transfer by tapping the date boxes. 3. To transfer by Email, tap the "Email" section. The Email will be automatically entered in the email field and your logs will be ready to be emailed. Tap the green transfer button to complete the transfer. 4. If the inspector asks to use Web Services, they will provide a routing code. After you enter the routing code, the last 8 days of your logs will be transferred to the FMCSA, where the inspector can review them.

  • Certification Statement

    Hardware Function Displays: Connection (Green Status Light) Cellular Network (Yellow Status Light) Bluetooth Connection (Blue Status Light) GNSS Position Fix (Red Status Light) Unauthorized Movement (Audio Alert) Each status indicator will show a live display of the monitored state of that portion of the ELD. The Software Application running on the Driver's Mobile Device will provide additional data in the event of any malfunctions, such as Compliance Malfunctions and Data Diagnostic Event Detections. Specifically, these are the errors described in TABLE 4 (Page 89), using the provided coding system for Malfunctions and Diagnostic Events: P: Power Compliance malfunction E: Engine Synchronization Compliance malfunction T: Timing Compliance malfunction L: Positioning Compliance malfunction R: Data Recording Compliance malfunction S: Data Transfer Compliance malfunction O: Other ELD-Detected malfunction 1: Power Data Diagnostic event 2: Engine Synchronization Data Diagnostic event 3: Missing Required Data Elements Data Diagnostic event 4: Data Transfer Data Diagnostic event 5: Unidentified Driving Records Data Diagnostic event 6: Other ELD-Identified Diagnostic event

User Manual: PDFNCX_User_Manual_v2_3.18.18.pdf
