Products with ELD "PROXT1"
Below you will find a list of products with the ELD "PROXT1" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

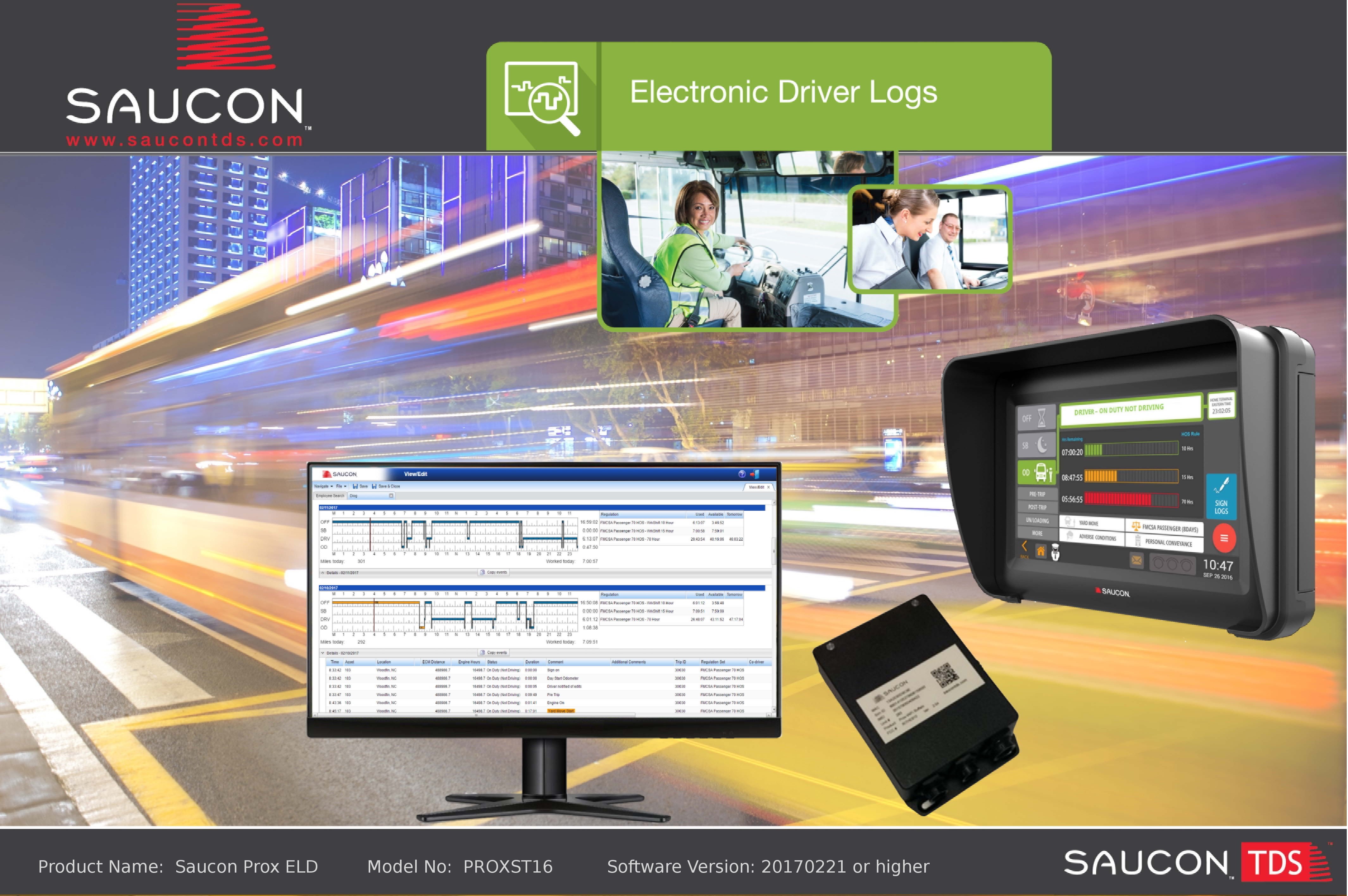

Saucon Prox ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Saucon Prox ELD | PROXST16 | 20170221 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
Saucon Prox ELD will use the telematics option (web services and email) to transfer the data during a roadside inspection. From the main screen, the driver taps the red menu button, and selects “Inspection Mode.” Once there, the driver taps the “Transfer” button. The driver is then prompted to select the method of transfer specified by the inspector (Web Services or email). Once the method of transfer is selected, the driver is prompted to enter an Output File Comment (if provided by officer). The driver enters the Comment, and taps ‘Send,’ or just taps ‘Send’ if the Comment is not required. The driver will receive on-screen confirmation that the request has been submitted.Certification Statement
Saucon Prox ELD provides the following diagnostic and malfunction events, as specified in the ELD regulation, Section 4.6 Table 4: “Power compliance” malfunction; “Engine synchronization compliance” malfunction; “Timing compliance” malfunction; “Positioning compliance” malfunction; “Data recording compliance” malfunction; “Data transfer compliance” malfunction; “Power data diagnostic” event; “Engine synchronization data diagnostic” event; “Missing required data elements data diagnostic” event; “Data transfer data diagnostic” event; “Unidentified driving records data diagnostic” event; “Other” ELD identified diagnostic event (Positioning diagnostic event). When no Data Diagnostic Events or Malfunctions are active, a light indicator will display green. When any of the above Data Diagnostics events are active, the light indicator will display yellow. When any of the above Malfunctions are active, the light indicator will display red.
User Manual:
FMCSA ELD USER MANUAL.pdf
Saucon Prox ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Saucon Prox ELD | PROXST16 | May 07 2026 |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
Saucon Prox ELD uses the telematics option (web services and email) to transfer the data during a roadside inspection. From the main screen, the driver taps the red menu button, and selects "Inspection Mode." Once there, the driver taps the "Transfer" button. The driver is then prompted to select the method of transfer specified by the inspector (Web Services or email), and enter a code provided. Once the method of transfer is selected and the code is entered, the file is transferred.Certification Statement
Saucon Prox ELD provides the following diagnostic and malfunction events, as specified in the ELD regulation, Section 4.6 Table 4: "Power compliance" malfunction; "Engine synchronization compliance" malfunction; "Timing compliance" malfunction; "Positioning compliance" malfunction; "Data recording compliance" malfunction; "Data transfer compliance" malfunction; "Power data diagnostic" event; "Engine synchronization data diagnostic" event; "Missing required data elements data diagnostic" event; "Data transfer data diagnostic" event; "Unidentified driving records data diagnostic" event. It also provides a ”Positioning diagnostic” (listed under the ‘Other’ category), if a vehicle has traveled 5 miles without acquiring a valid position measurement. The Saucon Prox ELD product uses a visual indicator which changes color to indicate diagnostic and malfunction status. When no Data Diagnostic Events or Malfunctions are active, the indicator will display green. When any of the noted Data Diagnostics events are active, the indicator will display yellow. When any of the noted Malfunctions are active, the light indicator will display red. If both a Malfunction and Data Diagnostic event are active, the indicator display red and yellow simultaneously.
