Products with ELD "LX2000"

Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

LoadTrek

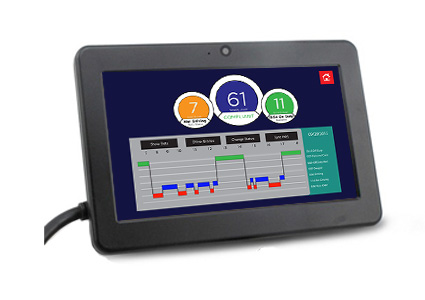

Product Image
Vendor Device Name Model Number Approved Version
LoadTrekLoadTrekLX20003.19

  • Data Transfer and Reporting Procedures

    > Telematic (Web Service)

  • Malfunctions and Testing

    Instantly transfer ELD records upon demand using: 1. Telematics transfer. Wireless Web Services and EMail (SMTP) submission to a single, central email address. 2. USB2 file transfer, via port in driver terminal. In the truck the driver from the home screen by selecting "HOS". Swiping the screen back and forth advances the HOS graph/grid from day to day. 3. Additionally, motor carrier may transfer to an email address.

  • Certification Statement

    The LX2000 has an LED that illuminates continuously during an active malfunction. Additionally, the driver display terminal shows a detailed view of ELD functions: GPS position, strength, and status; HOS ruleset/profile; engine-derived readings of speed, odometer, RPM; fault file logging; software version and update status; wide-area communications status and quality. Diagnostic Trouble Codes (DTC), known in the ELD rule as Malfunction/Diagnostic Codes: Power data diagnostic event: 1 Engine synchronization event: 2 Require Data Elements Missing data diagnostics event: 3 Data transfer data diagnostic data diagnostics event: 4 Unidentified driving records data diagnostics event: 5 "Other" ELD identified diagnostic event: 6 Power compliance malfunction: P Engine synchronization compliance malfunction: E Timing compliance malfunction: T GPS Positioning compliance malfunction: L Data recording compliance malfunction: R Data transfer compliance malfunction: S Other ELD detected malfunction: O

User Manual: PDFLoadTrek ELD Documentation - Final.pdf
