Trimble FieldMaster Logs - Self Revoked as of 7/6/2022
|Vendor||Device Name||Model Number||Approved Version|

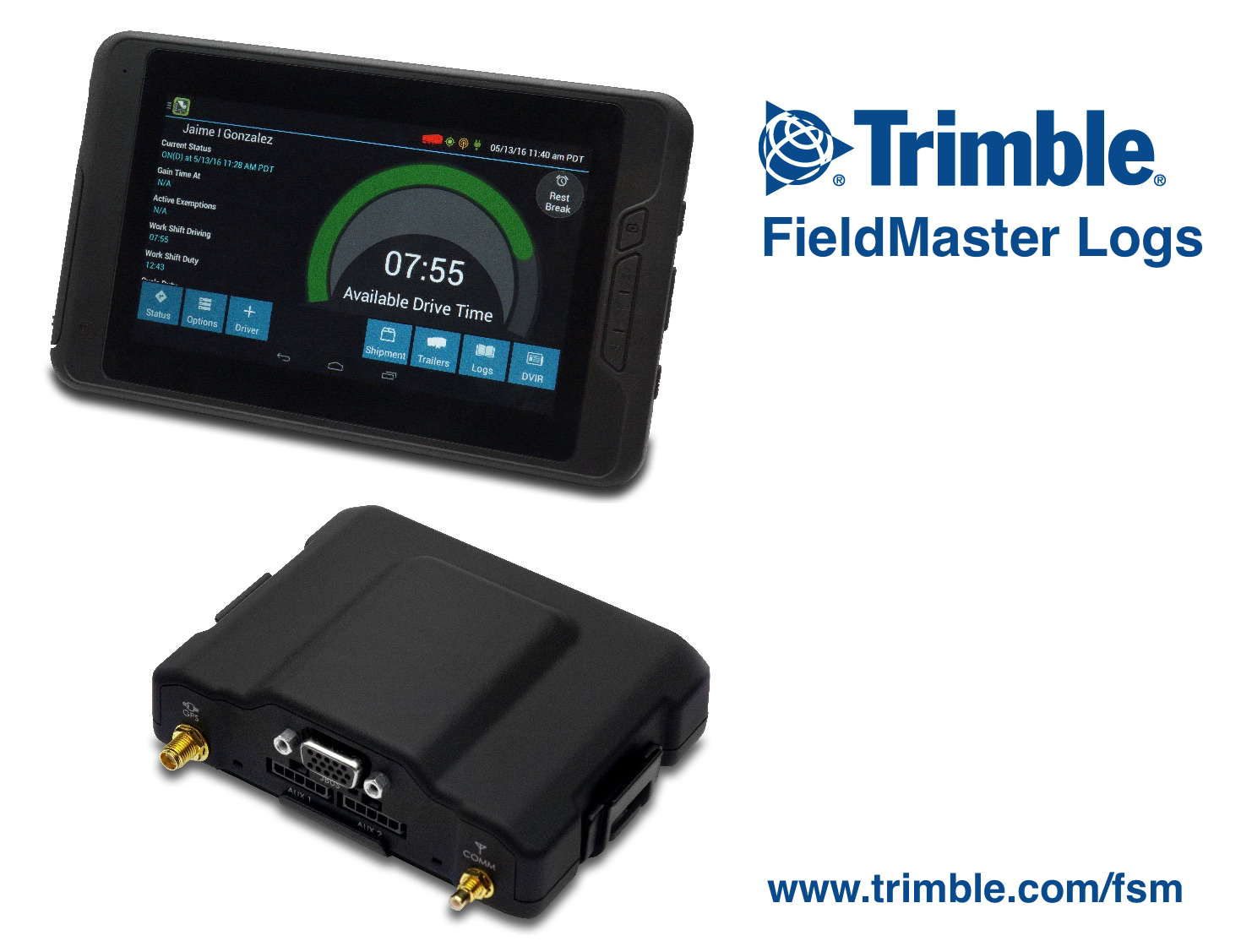

|Trimble||Trimble FieldMaster Logs||FML001 (TVG 670 & TDI 600)||v3.0 or higher|
Data Transfer and Reporting ProceduresThe system will transfer the data using either email or web services, the officer may select either option. Detailed Steps: • The Driver or Official will select the Options dropdown button on the driver overview screen, and select the Roadside Inspection option from that drop down. • This will navigate the user to a Logs Grid page that contains a button labeled Transmit ELD Data File. • The Officer taps on the Transmit Data File button. • A dialog will appear allowing the officer to choose between Wireless Web Service or Email and a space will be made available for the officers code • The system will use the pre-defined email or webservice address to send the file to the FMCSA site
Malfunctions and TestingP (Power) - Device lost power during driving events for a total of 30 min or more over a 24-hour period E (Engine synchronization) - Device lost connection to the ECM (or other data source) for a total of more than 30 min during a 24-hour period T (Timing) - Device is not able to synchronize to UTC L (Positioning) - Device is not able to acquire a valid position measurement within 5 mi of vehicle movement for a total of more than 60 min over a 24 hour period. R (Data recording) - Device is no longer able to record or retain required event data or retrieve locally-stored recorded logs S (Data transfer) - Device continues to fail checks of the roadside transfer mechanism for three days following a Data Transfer Diagnostic Event O (Other ELD detected) - The Trimble FieldMaster Logs application has stopped working or is not responding as expected
Certification StatementTrimble certifies, based on our completion of the testing procedures provided by the FMCSA in the Electronic Logging Device Test Plan and Procedures document version 2.0 dated 10/17/2016, that Trimble FieldMaster Logs v3 complies with all Federal Motor Carrier Safety Administration (FMCSA) specifications as found in 49 CFR Part 395 for Electronic Logging Devices, Subpart B.Devices, Subpart B.
