Products with ELD "TRS263"
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.
|Vendor||Device Name||Model Number||Approved Version|

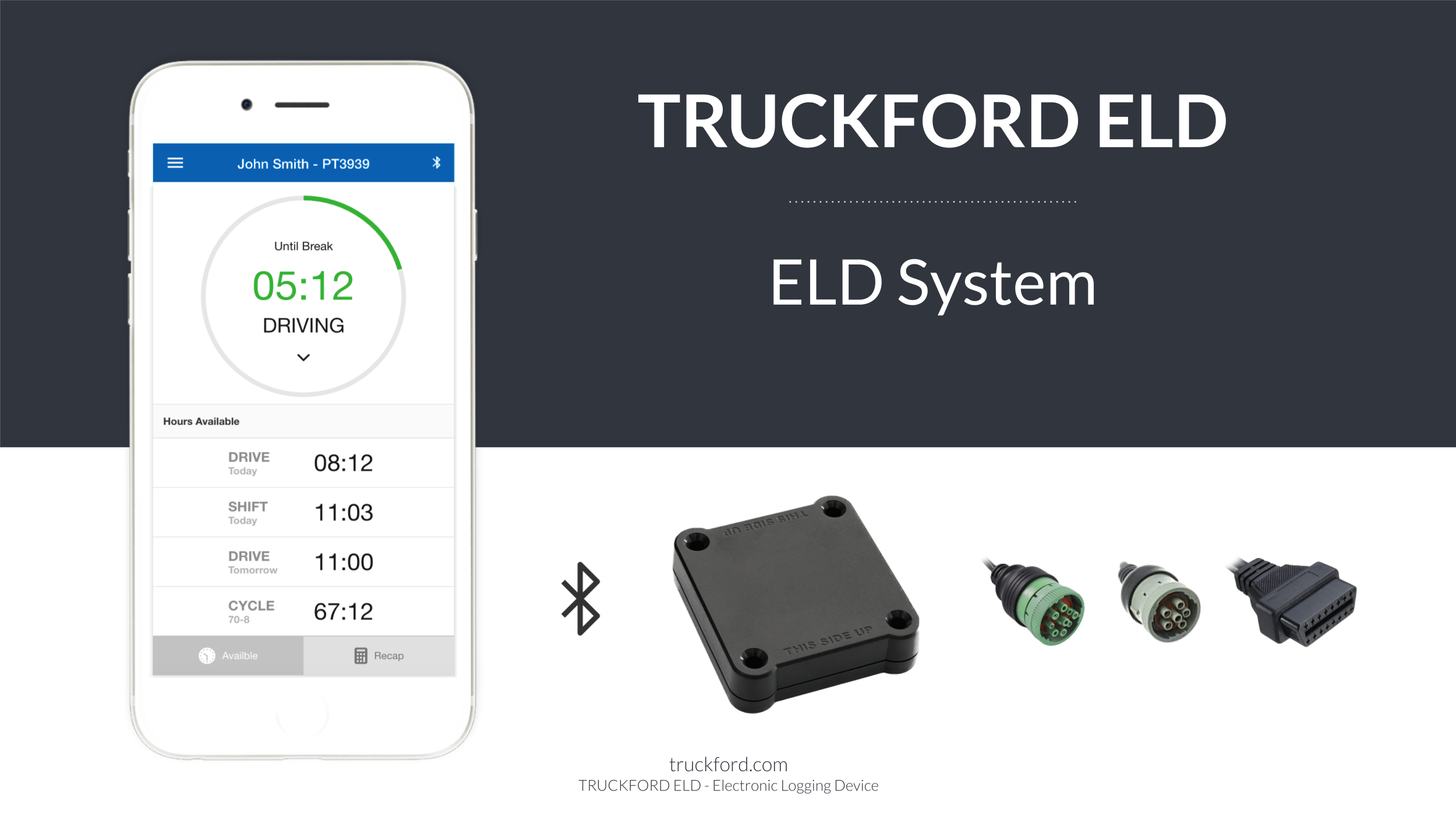

|Truckford ELD||TRUCKFORD ELD||TRS||2.0 or higher|
Data Transfer and Reporting ProceduresTRUCKFORD ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.
Malfunctions and TestingTRUCKFORD ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The TRUCKFORD ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on TRUCKFORD ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
Certification StatementTRUCKFORD ELD meets the technical specifications set forth in the Appendix to Subpart B of Part 395 of title 49, Code of Federal Regulations.TRUCKFORD ELD was tested to comply with FMCSA regulations by completing steps and testing procedures described in the Electronic Logging Device (ELD) Test Plan and Procedures Version 2.0.
