Products with ELD "SRS117"

Below you will find a list of products with the ELD "SRS117" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

SAFETY MONITORING ELD

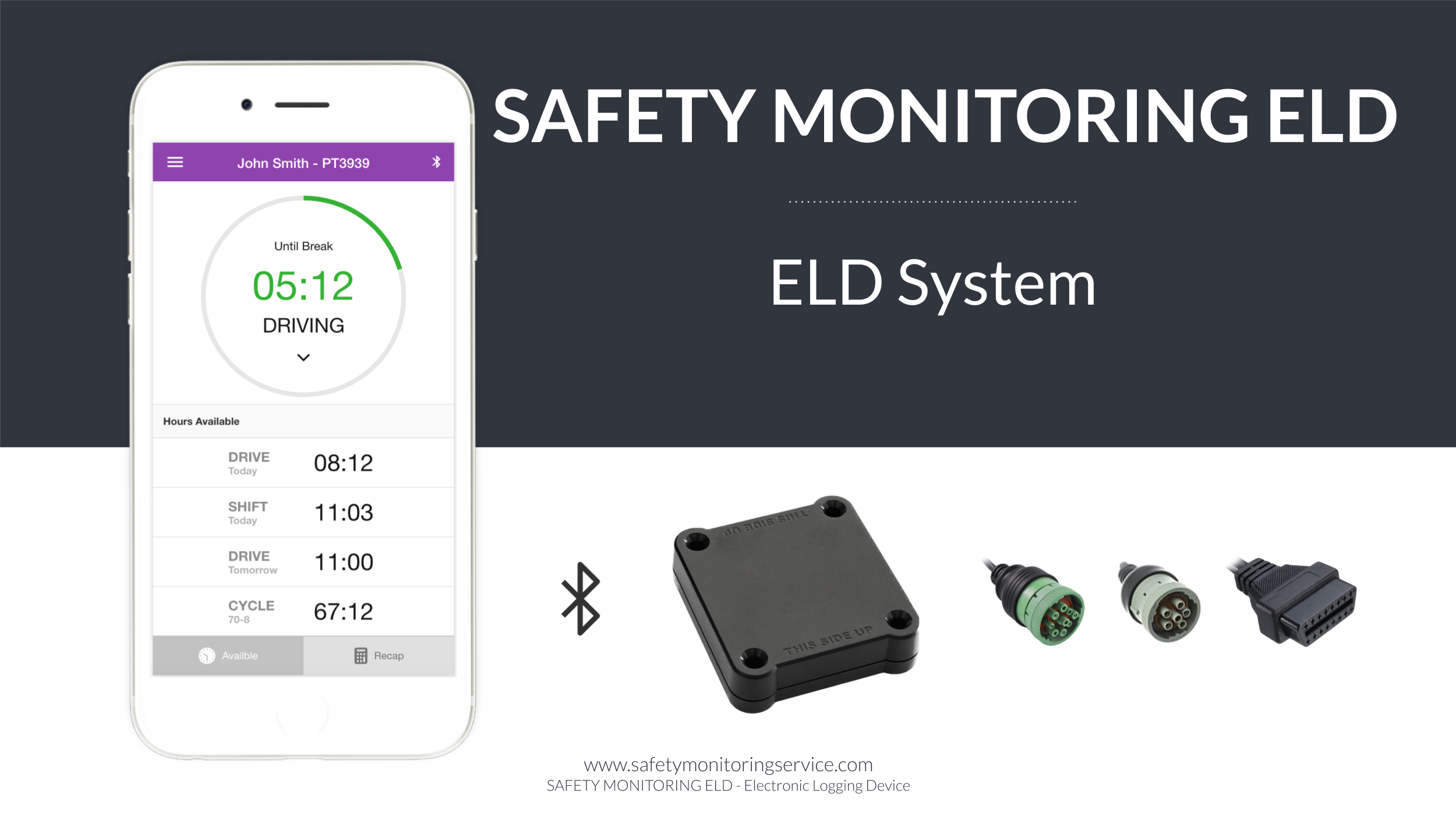

Product image for SAFETY MONITORING ELD
Vendor Device Name Model Number Approved Version
Safety Monitoring ServiceSAFETY MONITORING ELDSRS2.0 or higher

  • Data Transfer and Reporting Procedures

    >

  • Malfunctions and Testing

    SAFETY MONITORING ELD is capable of producing and transferring the ELD records viatelematics transfer methods: Wireless Web services and Email. In order to send the ELD recordsvia Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs”button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “SendLogs” button, select Email as the Data Transfer Type and press “SEND” button.

  • Certification Statement

    SAFETY MONITORING ELD monitors its compliance with the technical requirements and detectsmalfunctions and data inconsistencies and keeps records of its malfunction and data diagnosticevent detection. Following standard coding is implemented for required compliance malfunctionand data diagnostic event detection: P - “Power compliance” malfunction, E - “Enginesynchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioningcompliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfercompliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic”event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elementsdata diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving recordsdata diagnostic” event, 6 - “Other” ELD identified diagnostic event. The SAFETY MONITORINGELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred onSAFETY MONITORING ELD during the time period for which this file is generated. Activemalfunctions are indicated to all drivers who may use that ELD.

User Manual: PDFSAFETY-MONITORING-ELD-MANUAL.pdf
