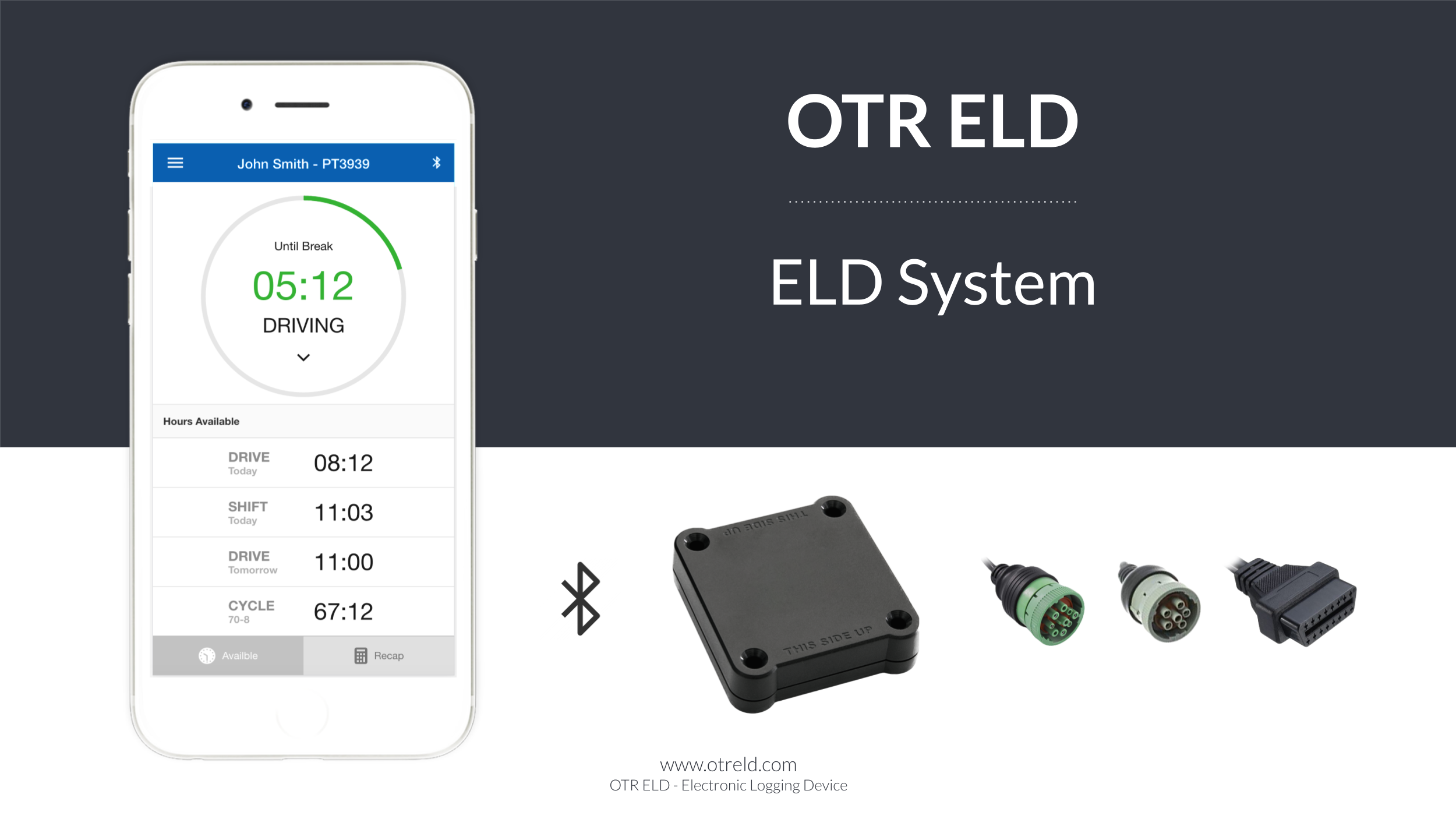

OTR ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | OTR ELD | ORS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
OTR ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The OTR ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on OTR ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.Certification Statement
OTR ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The OTR ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on OTR ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
OTR-ELD-MANUAL.pdf.pdf

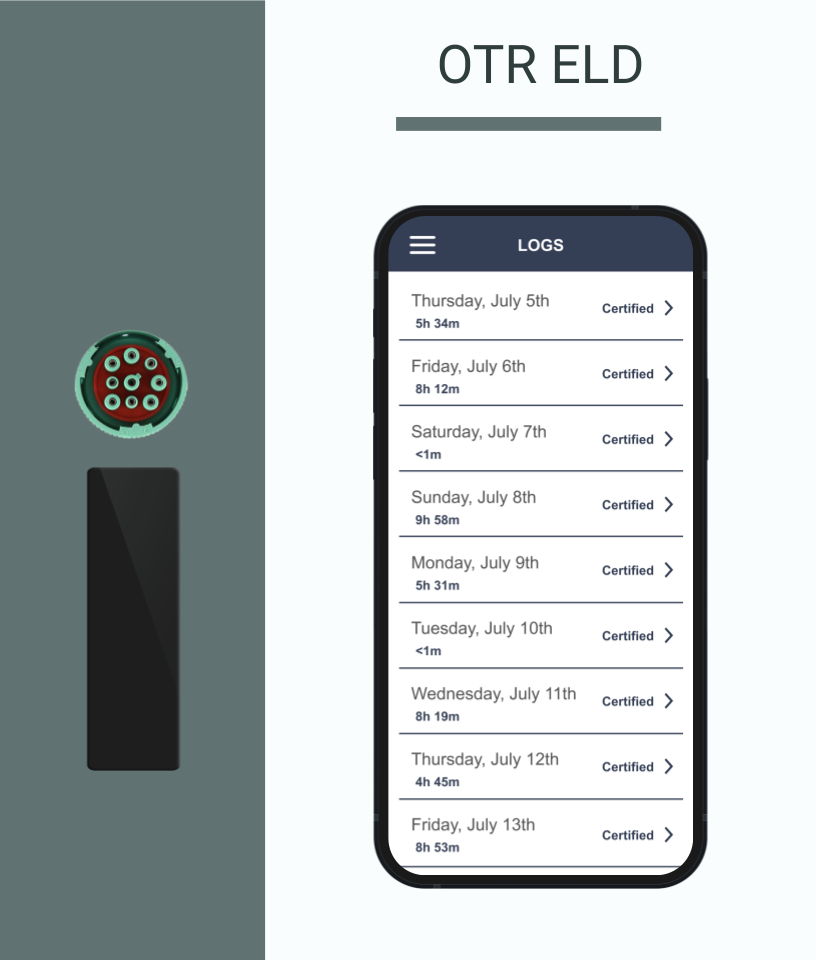

OTR ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | OTR ELD | RTO8X | 2.23.1 or above |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
During roadside inspections, drivers rely on the OTR ELD as a valuable asset due to its ability to provide a thorough overview of their records. Within the application, retrieving this information is easy, and the ELD facilitates the seamless transfer of telematics data through email or web services. The transfer process is initiated by drivers navigating to the DOT Mode menu and selecting the "Send" option. Moreover, the designated DOT Mode button ensures drivers can effortlessly showcase the log report on their mobile device when presenting it to a DOT officer.Certification Statement
OTR ELD features an advanced self-monitoring system that proactively detects malfunctions and diagnostic events as per the guidelines outlined in section 4.6 of the ELD mandate. Whether it involves unidentified driving, data transfer, required data elements, data recording, power, engine synchronization, timing, or positioning, any issues are swiftly identified, recorded, and visually conveyed to the driver, ensuring prompt notification. Specific codes are assigned to compliance malfunctions and diagnostic events, including: ● P for "Power compliance" malfunction, ● E for "Engine synchronization compliance" malfunction, ● T for "Timing compliance" malfunction, ● L for "Positioning compliance" malfunction, ● R for "Data recording compliance" malfunction, ● S for "Data transfer compliance" malfunction, ● O for "Other" ELD-detected malfunctions, ● 1 for "Power data diagnostic" event, ● 2 for "Engine synchronization data diagnostic" event, ● 3 for "Missing required data elements data diagnostic" event, ● 4 for "Data transfer data diagnostic" event, ● 5 for "Unidentified driving records data diagnostic" event ● 6 for "Other" ELD-identified diagnostic events.
User Manual: OTR ELD Manual.pdf
