Products with ELD "ORNT77"
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

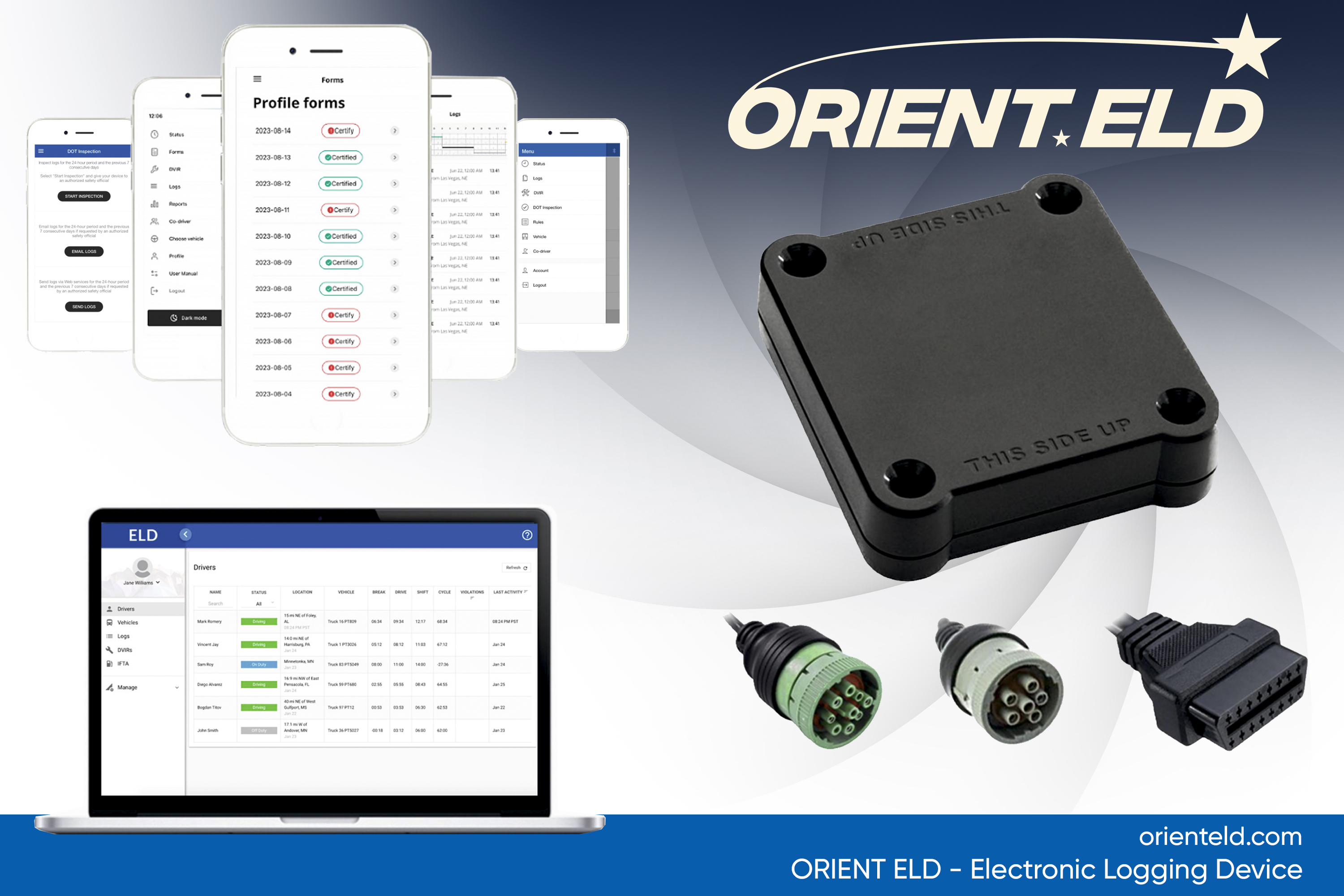

ELD ORIENT
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ELD ORIENT | ORIENT17 | 1.0.0 and higher |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
The ORIENT ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. The ORIENT ELD supports data transfer through telematics, enabling RODS to be transmitted via wireless web services or email during roadside inspections through the "REPORTS" Mode feature of the mobile app. In order to transfer the ELD records via Web services, a user must press “REPORTS” from menu bar and then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “REPORTS” menu bar and then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
The ORIENT ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The ORIENT ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on the ORIENT ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
ORIENT ELD MANUAL.pdf
