Products with ELD "NRS232"
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

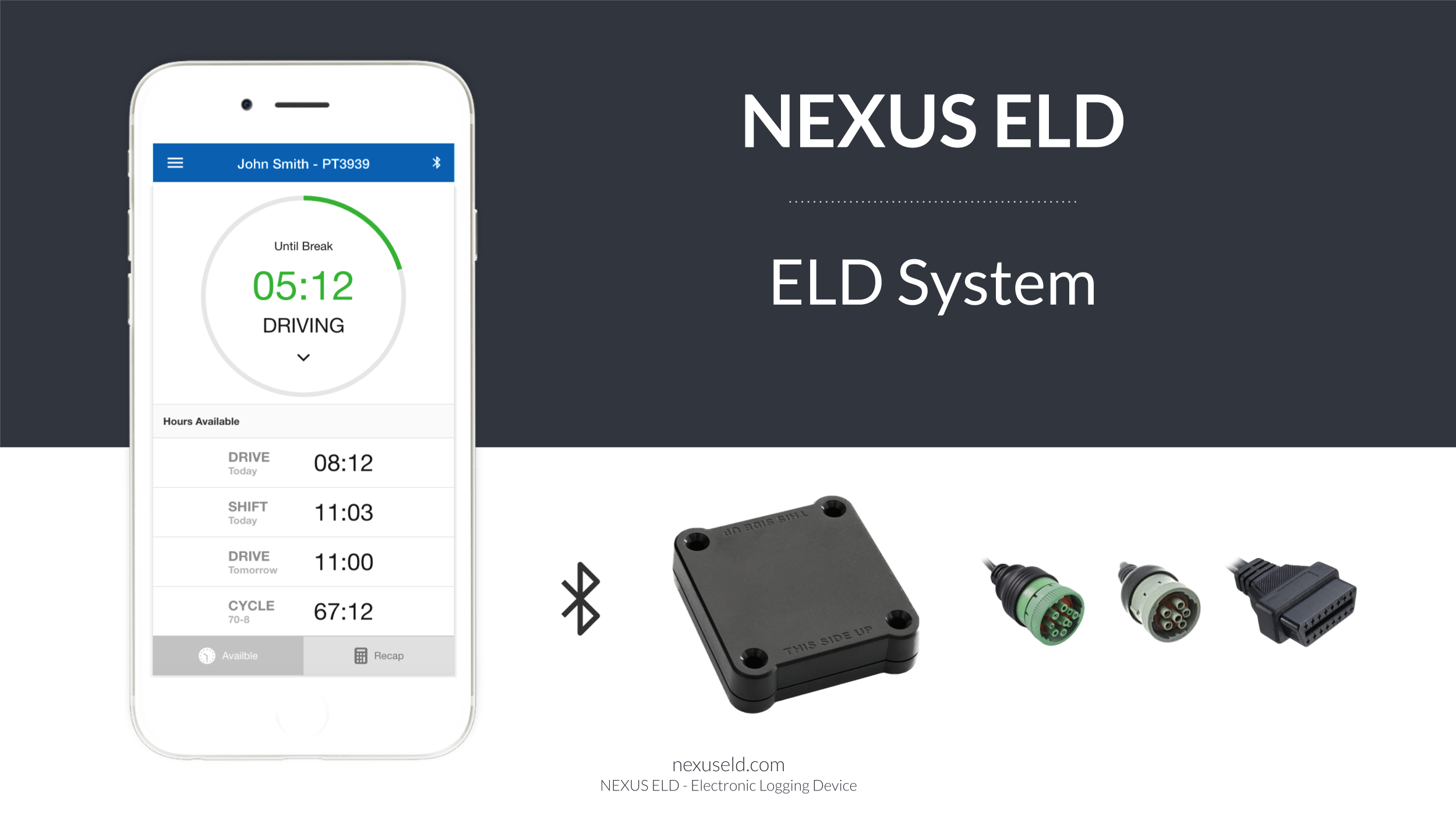

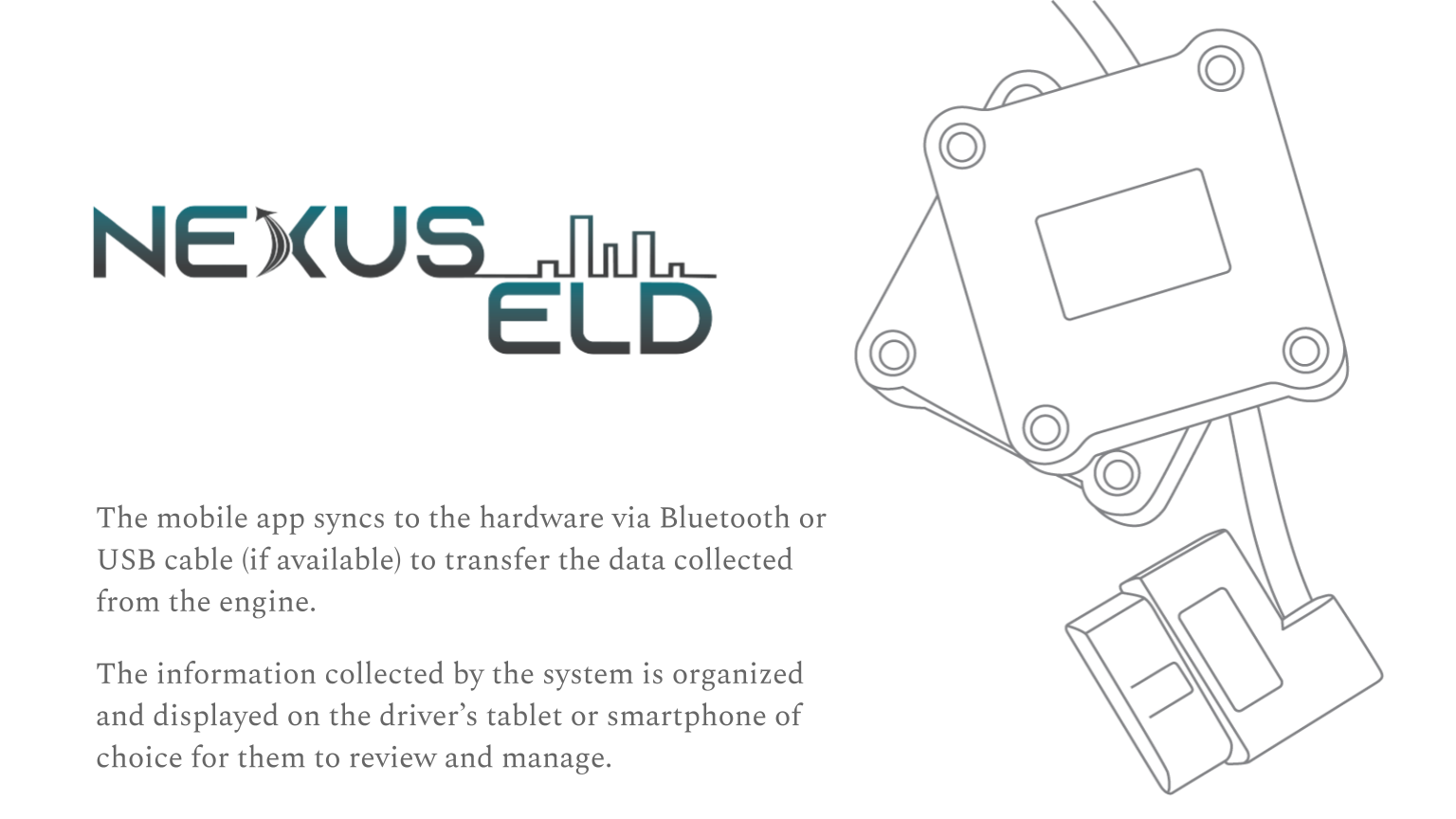

Nexus ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Nexus ELD | NRS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
NEXUS ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
NEXUS ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The NEXUS ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on NEXUS ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
NEXUS-ELD-MANUAL.pdf
Nexus ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | Nexus ELD | NRS | higher than 2.23.2. |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
During a roadside inspection, NEXUS ELD offers a compilation of the driver’s ELD records in-app and it also supports telematics data transfers via email or web services. The DOT Inspection mode allows the driver to choose either option.Certification Statement
Malfunctions are automatically detected to avoid compliance issues as required by the legislation. If an ELD malfunction event is identified, the ELD will keep a record of it, and the driver will receive a visual notification so they can troubleshoot the issue or alert their carrier.
User Manual: Quick-Start-Guide-NEXUS_ELD.pdf
