Products with ELD "NELD10"

Below you will find a list of products with the ELD "NELD10" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

Novalinq ELD

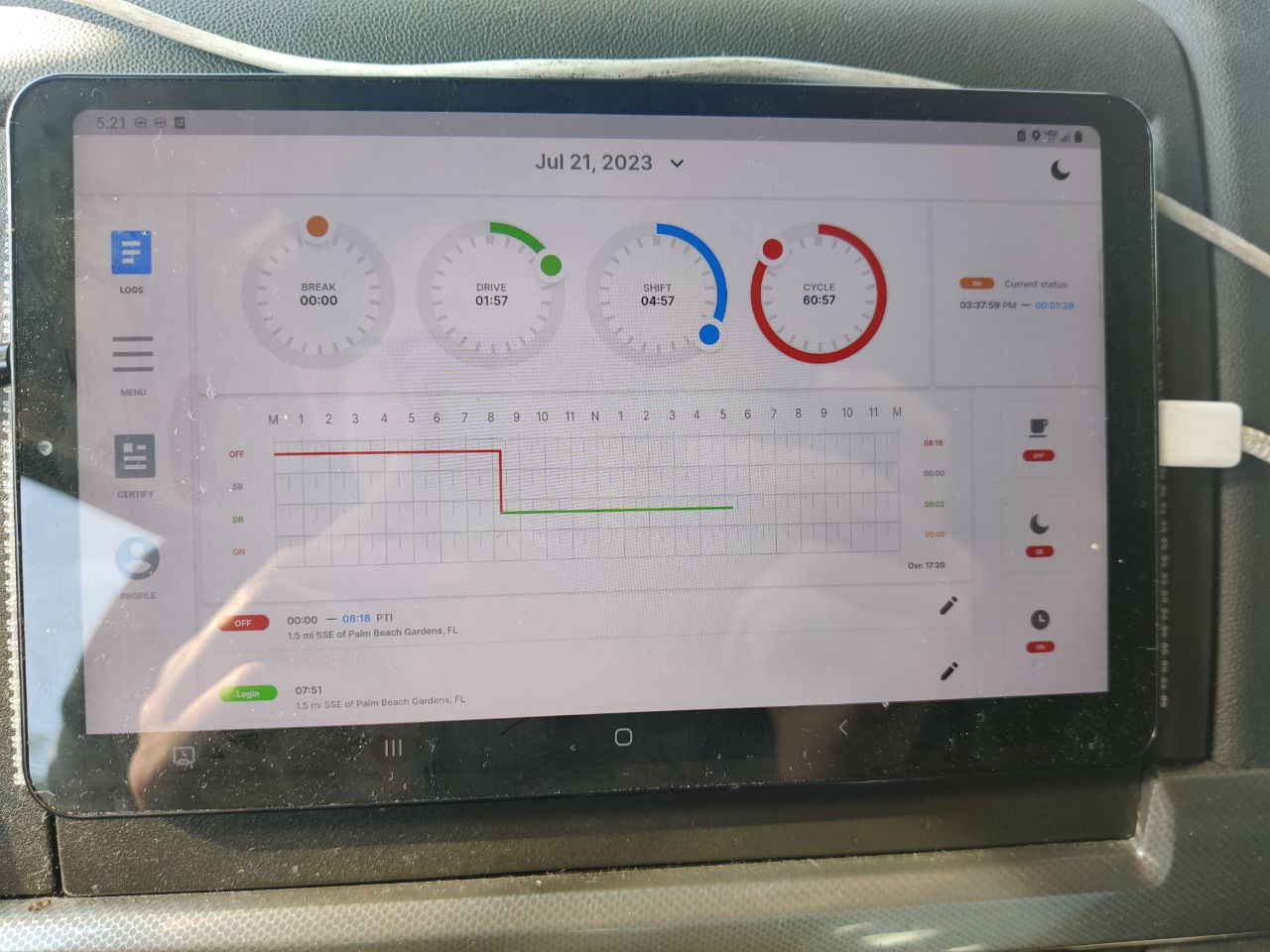

Product image for Novalinq ELD
Vendor Device Name Model Number Approved Version
Novalinq, Inc.Novalinq ELDNE1001.0.0

  • Data Transfer and Reporting Procedures

    > Telematic (Web Service, Email)

  • Malfunctions and Testing

    The Novalinq ELD platform is designed to facilitate the transfer of ELD data through web services and email When using web services to send data to authorized safety officials, there are two steps involved. First, navigate to the "Start Inspection" option in the menu bar, and then select "SEND ELD" to initiate the transfer. Alternatively, if the ELD data needs to be sent via email, the driver should access the "DOT Inspection" option from the menu bar. From there, they can select "Email Logs," enter the email address provided by the authorized safety official, and finally, click on "SEND LOGS" to complete the process.

  • Certification Statement

    Novalinq ELD ensures compliance with technical requirements by monitoring and detecting malfunctions and data inconsistencies. It maintains comprehensive records of these malfunctions and data diagnostic events. The following standard coding is used for identifying required compliance malfunctions and data diagnostic events: - P: Power compliance malfunction - E: Engine synchronization compliance malfunction - T: Timing compliance malfunction - L: Positioning compliance malfunction - R: Data recording compliance malfunction - S: Data transfer compliance malfunction - O: Other ELD-detected malfunction
 - 1: Power data diagnostic event - 2: Engine synchronization data diagnostic event - 3: Missing required data elements data diagnostic event - 4: Data transfer data diagnostic event - 5: Unidentified driving records data diagnostic event - 6: Other ELD-identified diagnostic event The Novalinq ELD Malfunction and Diagnostic Event Records contain a comprehensive list of all ELD malfunctions that occurred during HOS period. Any active malfunctions are indicated to drivers using the Novalinq ELD application.

User Manual: PDFNovalinq ELD_User manual.pdf
