Products with ELD "IRS198"
- INFINITY-ELD Version 2.0 or higher
- INFINITY-ELD Version 2.24 or higher
- INFINITY-ELD Version 2.4.10 and up
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

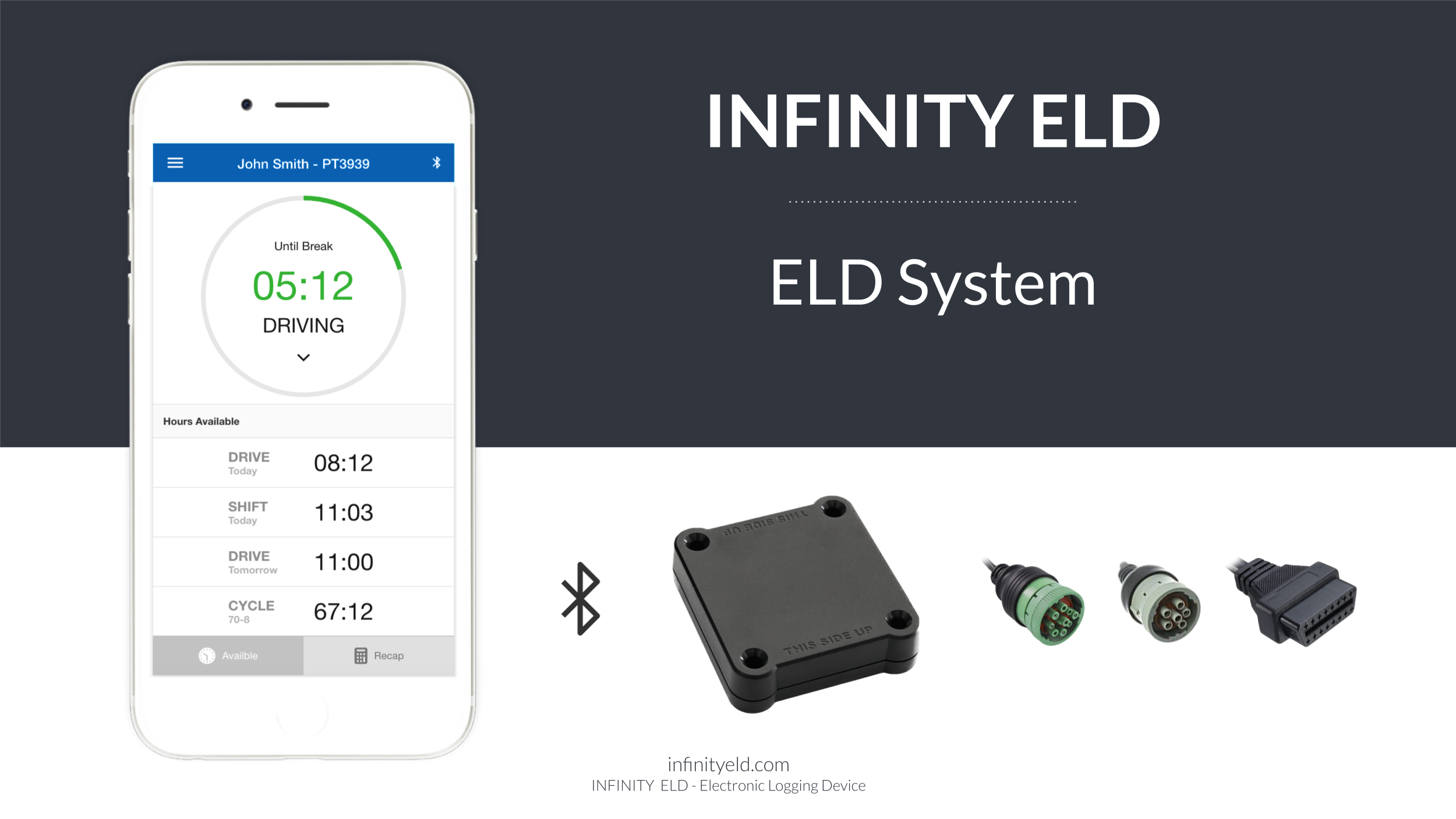

INFINITY ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | INFINITY ELD | IRS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
INFINITY ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
INFINITY ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The INFINITY ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on INFINITY ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
INFINITY-ELD-MANUAL.pdf
INFINITY ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | INFINITY ELD | IRS | 2.24 or higher |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
According to 49 CFR 395.4.9.1, drivers using the INFINITY ELD system can transfer log data through telematics. If an officer needs to review a driver's logs, the driver can produce a report on their mobile device or transfer log data through web services or email.Certification Statement
The INFINITY ELD system has the capability to self-detect any malfunctions as per the guidelines given in Appendix A, section 4.6. Drivers using the system will be alerted with a visual signal in case of any malfunction or diagnostic event that includes data recording, data transfer, missing data elements, power failure, engine synchronization, timing, positioning and unidentified driving.
User Manual: INFINITY ELD MANUAL FOR DRIVERS.pdf
INFINITY ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | INFINITY ELD | IRS | 2.4.10 and up |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
INFINITY ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
INFINITY ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The INFINITY ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on INFINITY ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual: INFINITY-ELD-MANUAL.pdf
