Products with ELD "GPSI01"
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

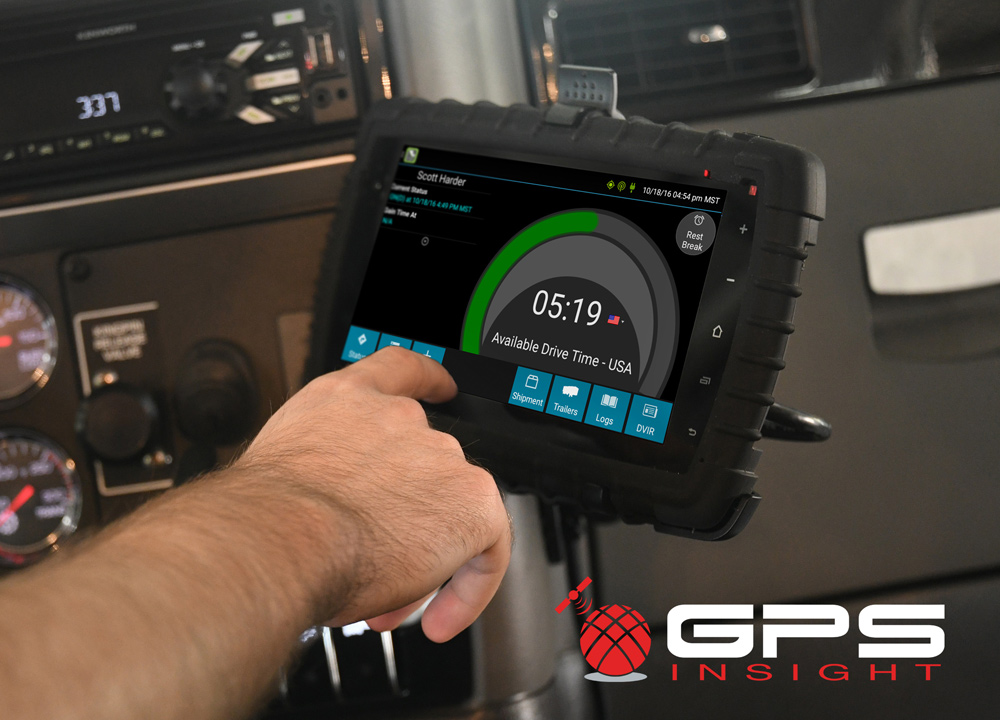

ELD-2000
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ELD-2000 | ELD-2000 | 1.2.70.0A or higher |
Data Transfer and Reporting Procedures
We have chosen to use wireless web services and email as our choice for the ELD output file. Instructions: Driver or Official will use the Options button on the driver overview screen Driver or Official will use the Roadside Inspection button on the drop down This button will navigate the user to a Logs Grid page The Logs Grid page will contain a button labeled "Transmit ELD Data File” The Officer will tap on the button and be instructed to choose email or wireless webservices and enter the instructions or code to send the data file to the FMCSAMalfunctions and Testing
Power - P; Device lost power during driving events for a total of 30 min or more over a 24-hour period Engine synchronization - E; Device lost connection to the ECM (or other data source) for a total of more than 30 min during a 24-hour period Timing - T; Device is not able to synchronize to UTC Positioning - L; Device is not able to acquire a valid position measurement within 5 mi of vehicle movement for a total of more than 60 min over a 24 hour period. Data recording - R; Device is no longer able to record or retain required event data or retrieve locally-stored recorded logs Data transfer- S; Device continues to fail checks of the roadside transfer mechanism for three days following a Data Transfer Diagnostic Event Other ELD detected - O; The eFleetSuite application has stopped working or is not responding as expectedCertification Statement
GPS Insight certifies based on our completion of the testing procedures provided by the FMCSA in the Electronic Logging Device Test Plan and Procedures document version 2.0 dated 10/17/2016 that GPSI 2000 and complies with all Federal Motor Carrier Safety Administration (FMCSA) specifications as found in 49 CFR Part 395 for Electronic Logging Devices, Subpart B.Devices, Subpart B.
User Manual:
ELD Driver Reference.pdf
ELD-2000 - Self Revoked as of 1701718397
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ELD-2000 | ELD-2000 | 10.0.4A or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
We have chosen to use wireless web services and email as our choice for the ELD output file. Instructions: Driver or Official will use the Options button on the driver overview screen Driver or Official will use the Roadside Inspection button on the drop down This button will navigate the user to a Logs Grid page The Logs Grid page will contain a button labeled "Transmit ELD Data File” The Officer will tap on the button and be instructed to choose email or wireless webservices and enter the instructions or code to send the data file to the FMCSACertification Statement
Power - P; Device lost power during driving events for a total of 30 min or more over a 24-hour period Engine synchronization - E; Device lost connection to the ECM (or other data source) for a total of more than 30 min during a 24-hour period Timing - T; Device is not able to synchronize to UTC Positioning - L; Device is not able to acquire a valid position measurement within 5 mi of vehicle movement for a total of more than 60 min over a 24 hour period. Data recording - R; Device is no longer able to record or retain required event data or retrieve locally-stored recorded logs Data transfer- S; Device continues to fail checks of the roadside transfer mechanism for three days following a Data Transfer Diagnostic Event Other ELD detected - O; The eFleetSuite application has stopped working or is not responding as expected
User Manual: ELD Driver Reference.pdf
