Products with ELD "ERS246"
Below you will find a list of products with the ELD "" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufactorer, as well as contact information for further troubleshooting.

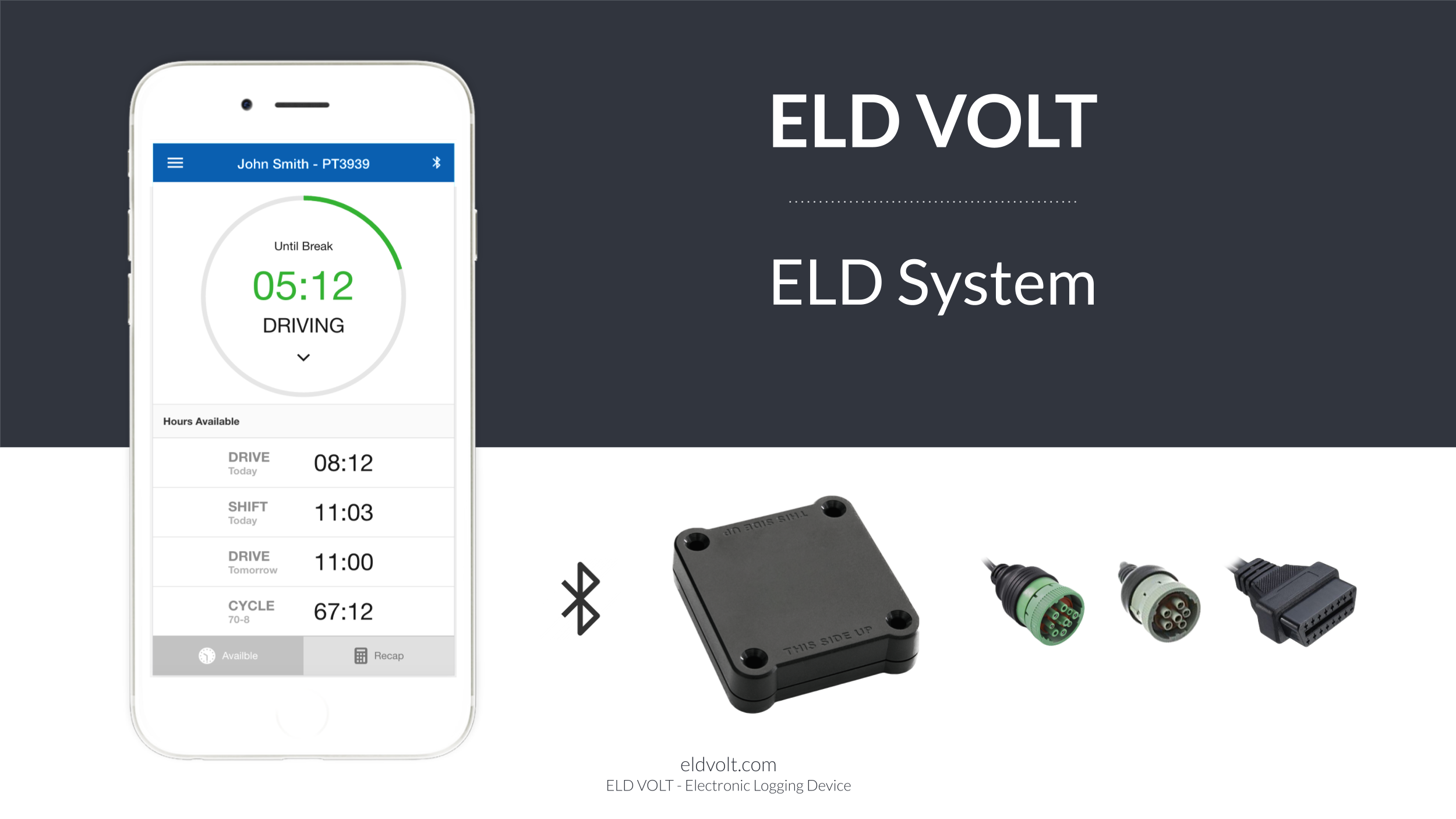

ELD VOLT
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ELD VOLT | ERS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
ELD VOLT is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
ELD VOLT monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The ELD VOLT Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on ELD VOLT during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
ELD-VOLT-MANUAL.pdf
ELD VOLT
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ELD VOLT | ERS | 2.91.1 or above |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
Using an electronic data transfer method, driver logs are efficiently transferred through the ELD VOLT system. When needed, drivers can opt to use the mobile app for sending logs via email or web services. In order to initiate the transfer process the driver should navigate to the DOT Mode menu section and select the "Send" button. Furthermore, to present logs to the DOT officer on their mobile device, drivers can use a designated DOT Mode button in the respective menu section.Certification Statement
The ELD VOLT system is implemented to ensure compliance with technical specifications, identify malfunctions and data inconsistencies, and document such occurrences. The Malfunction and Diagnostic Event Records of ELD VOLT comprehensively capture all malfunctions that occurred during the relevant period, with notifications about active malfunctions distributed to all ELD users. The classification of compliance malfunctions and diagnostic events involves the use of specific codes: P for "Power compliance" malfunction, E for "Engine synchronization compliance" malfunction, T for "Timing compliance" malfunction, L for "Positioning compliance" malfunction, R for "Data recording compliance" malfunction, S for "Data transfer compliance" malfunction, O for "Other" ELD-detected malfunctions, 1 for "Power data diagnostic" event, 2 for "Engine synchronization data diagnostic" event, 3 for "Missing required data elements data diagnostic" event, 4 for "Data transfer data diagnostic" event, 5 for "Unidentified driving records data diagnostic" event, and 6 for "Other" ELD-identified diagnostic events.
User Manual: ELD VOLT Manual.pdf
