Products with ELD "D9Y14G"
Below you will find a list of products with the ELD "D9Y14G" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

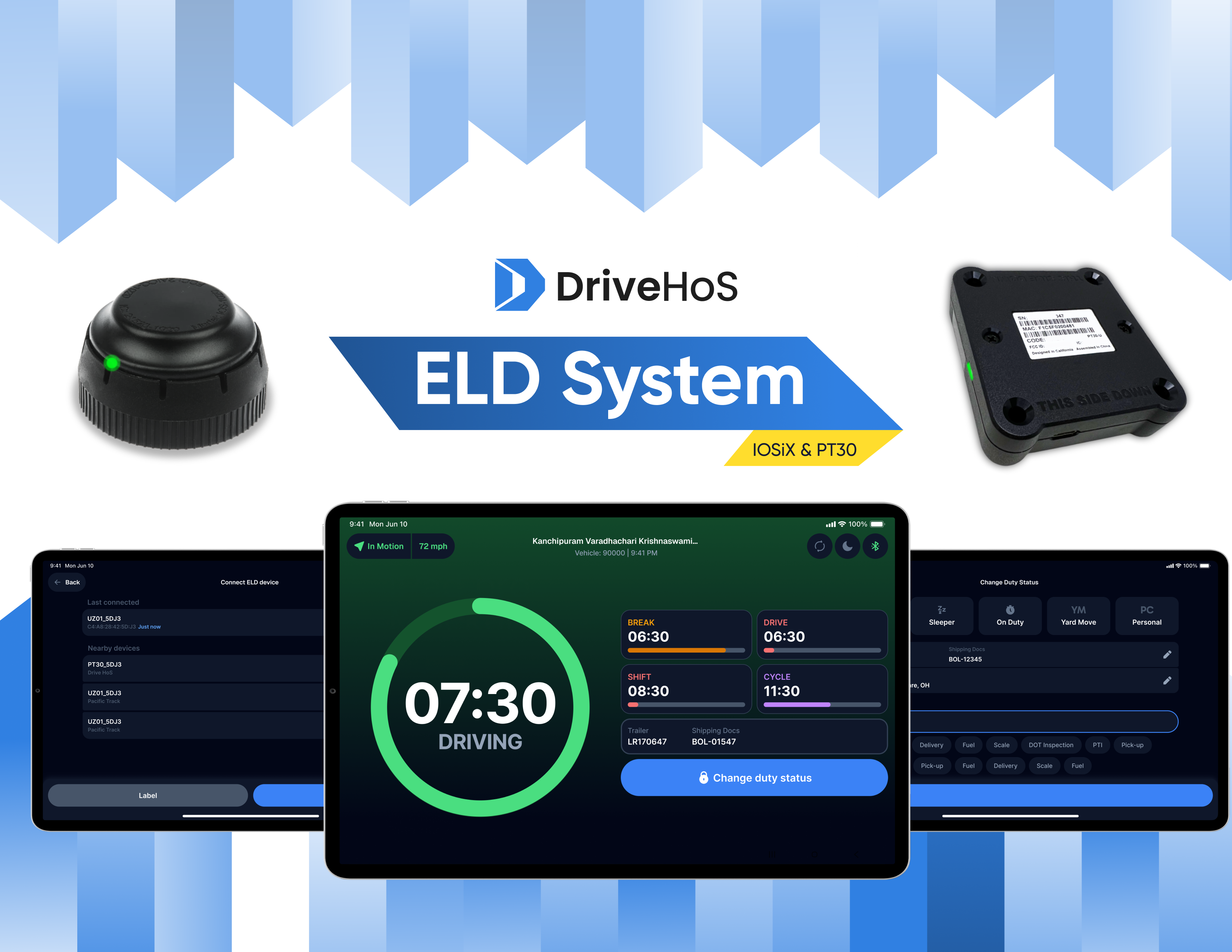

DriveHoS ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | DriveHoS ELD | P10MQ7 | 4.017 or higher |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
DriveHoS ELD produces and transfers ELD records using two telematics methods: wireless web services and email. To send records by either method, the driver opens the DOT Inspection menu, presses Transfer Logs, selects the Data Transfer Type (Web Service or Email), and presses SEND.Certification Statement
DriveHoS ELD continuously monitors its compliance with the applicable technical requirements, detects malfunctions and data inconsistencies, and keeps a record of every malfunction and data diagnostic event it detects. The following standard codes are used: Malfunctions P - Power compliance E - Engine synchronization compliance T - Timing compliance L - Positioning compliance R - Data recording compliance S - Data transfer compliance O - Other ELD detected malfunction Data diagnostic events 1 - Power data diagnostic 2 - Engine synchronization data diagnostic 3 - Missing required data elements data diagnostic 4 - Data transfer data diagnostic 5 - Unidentified driving records data diagnostic 6 - Other ELD identified diagnostic event The DriveHoS ELD Malfunction and Diagnostic Event Records list all malfunctions that occurred on the ELD during the period covered by the generated file. Active malfunctions are shown to every driver who uses that ELD.
User Manual:
DriverHoS.pdf
