Products with ELD "ARS143"
Below you will find a list of products with the ELD "ARS143" obtained from our database, including their available manuals, documentation, and images.
Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

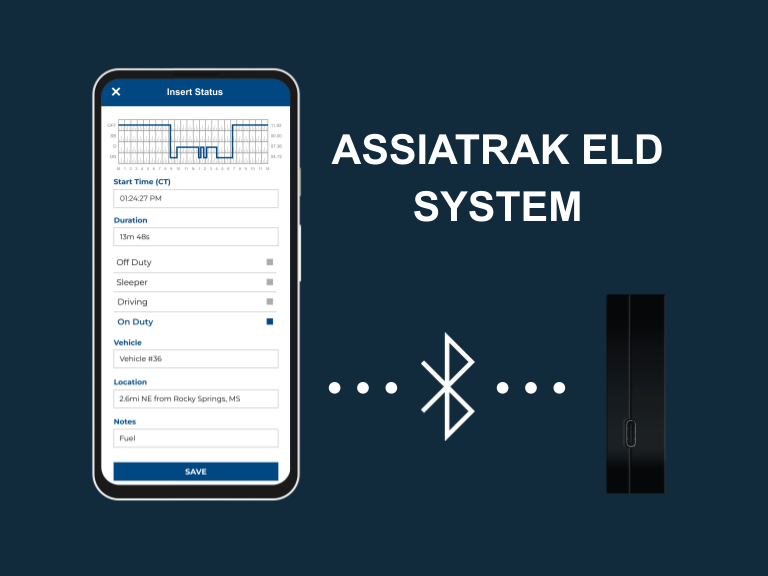

ASSIATRAK ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ASSIATRAK ELD | ARS | 2.0 or higher |
Data Transfer and Reporting Procedures
>Malfunctions and Testing
ASSIATRAK ELD is capable of producing and transferring the ELD records via telematics transfer methods: Wireless Web services and Email. In order to send the ELD records via Web services, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Web Service as the Data Transfer Type and press “SEND” button. In order to send the ELD records via Email, a driver must press “DOT Inspection” menu item, then press “Send Logs” button, select Email as the Data Transfer Type and press “SEND” button.Certification Statement
ASSIATRAK ELD monitors its compliance with the technical requirements and detects malfunctions and data inconsistencies and keeps records of its malfunction and data diagnostic event detection. Following standard coding is implemented for required compliance malfunction and data diagnostic event detection: P - “Power compliance” malfunction, E - “Engine synchronization compliance” malfunction, T - “Timing compliance” malfunction, L - “Positioning compliance” malfunction, R - “Data recording compliance” malfunction, S - “Data transfer compliance” malfunction, O - “Other” ELD detected malfunction, 1 - “Power data diagnostic” event, 2 - “Engine synchronization data diagnostic” event, 3 - “Missing required data elements data diagnostic” event, 4 - “Data transfer data diagnostic” event, 5 - “Unidentified driving records data diagnostic” event, 6 - “Other” ELD identified diagnostic event. The ASSIATRAK ELD Malfunction and Diagnostic Event Records list all ELD malfunctions that have occurred on ASSIATRAK ELD during the time period for which this file is generated. Active malfunctions are indicated to all drivers who may use that ELD.
User Manual:
ASSIATRAK-ELD-MANUAL.pdf

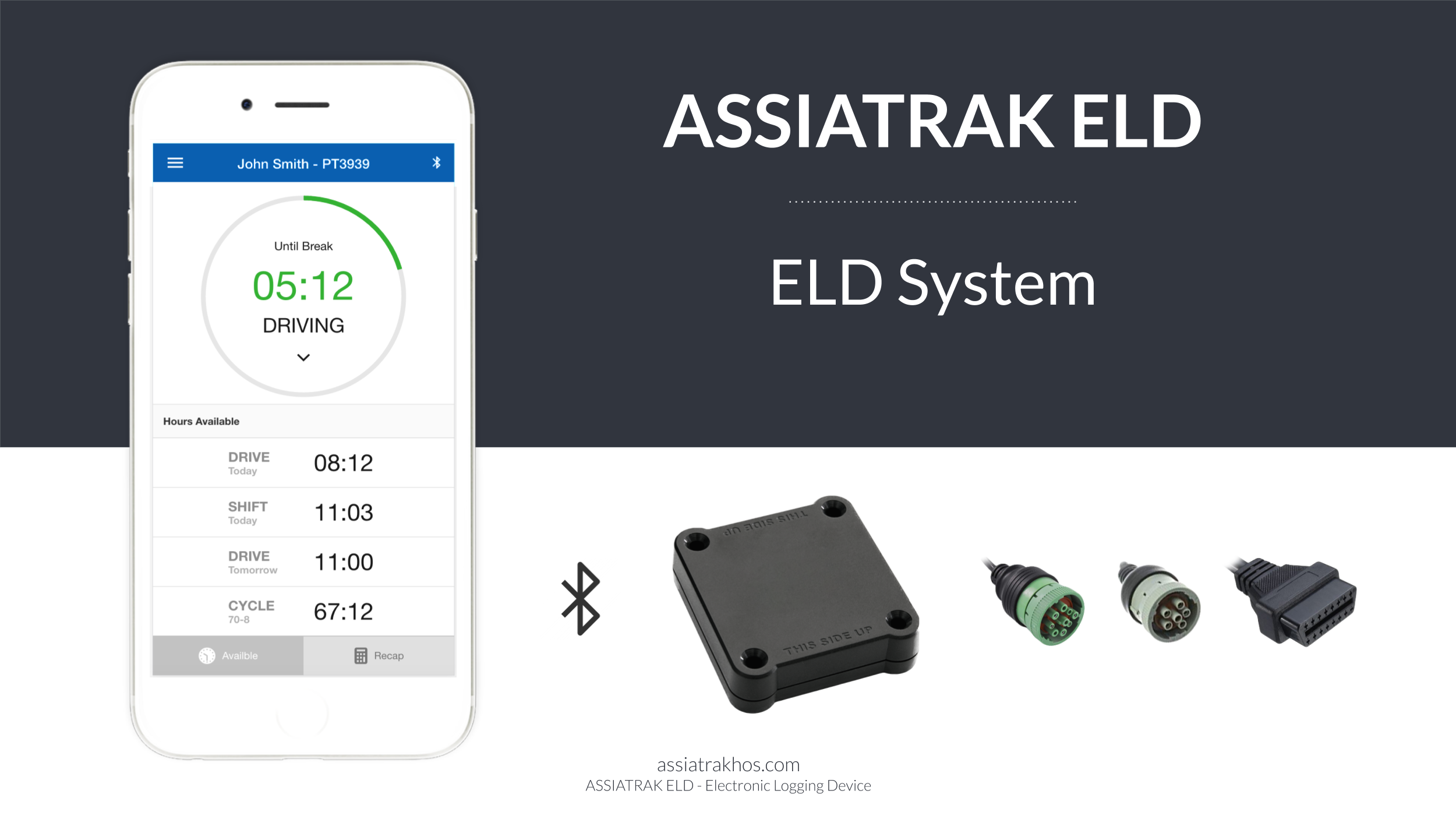

ASSIATRAK ELD
| Vendor | Device Name | Model Number | Approved Version |
|---|---|---|---|
| | ASSIATRAK ELD | ATR-C | 2.23.06 and Later |
Data Transfer and Reporting Procedures
> Telematic (Web Service, Email)Malfunctions and Testing
When conducting roadside inspections, the ASSIATRAK ELD proves to be an invaluable asset for drivers as it offers a thorough summary of their records. Retrieving this data is a breeze within the application, and the ELD streamlines the transmission of telematics data through email or web services. Commencing the transfer procedure is simple for drivers, who can easily navigate to the DOT Mode menu and select the "Send" option. Furthermore, a designated DOT Mode button guarantees that drivers can effortlessly display the log report on their mobile device when presenting it to a DOT officer.Certification Statement
The ASSIATRAK ELD Malfunction and Diagnostic Event Records document all malfunctions that occurred during the relevant time period and notify all ELD users about active malfunctions. In order to ensure compliance, detect malfunctions and data inconsistencies, and document such occurrences, the ASSIATRAK ELD system utilizes specific codes to classify compliance malfunctions and diagnostic events. These codes include: "P" for "Power compliance" malfunction, "E" for "Engine synchronization compliance" malfunction, "T" for "Timing compliance" malfunction, "L" for "Positioning compliance" malfunction, "R" for "Data recording compliance" malfunction, "S" for "Data transfer compliance" malfunction, "O" for "Other" ELD-detected malfunctions, "1" for "Power data diagnostic" event, "2" for "Engine synchronization data diagnostic" event, "3" for "Missing required data elements data diagnostic" event, "4" for "Data transfer data diagnostic" event, "5" for "Unidentified driving records data diagnostic" event, "6" for "Other" ELD-identified diagnostic events.
User Manual: ASSIATRAK ELD MANUAL.pdf
