Products with ELD "0X2P3R"

Below you will find a list of products with the ELD "0X2P3R" obtained from our database, including their available manuals, documentation, and images.

Click the corresponding vendor name to obtain additional information on the manufacturer, as well as contact information for further troubleshooting.

Xpert ELD

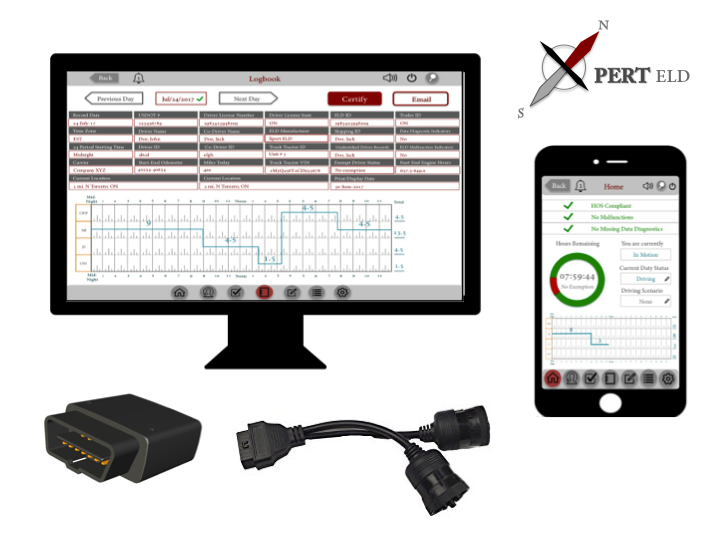

Product image for Xpert ELD
Vendor Device Name Model Number Approved Version
XPERT-IT SOLUTIONS INC.Xpert ELDN775G2.1

  • Data Transfer and Reporting Procedures

    >

  • Malfunctions and Testing

    Xpert ELD supports the following data transfer mechanisms: - Wireless Web Services - Email (As specified in Option 1 from Appendix B, section 4.9.1 of ‘The Final Rule with Technical Specifications’ posted on the FMCSA website). Here are the step-by-step instructions for a driver to produce and transfer the ELD records to an authorized safety official: 1. Login to Xpert ELD with a valid driver user account 2. Navigate to the driver’s duty status records by selecting the logbook option from the main menu found at the bottom of the screen 3. Select the appropriate date (the output file will include the complete log information for the selected date and seven days prior to the selected date) 4. Press the Email button at the top of the screen 5. Enter the email address of the authorized safety official 6. Include a relevant subject and e-mail message 7. Press the send button 8. Logout Notes: - The ELD attaches the file to the email using Simple Mail Transfer Protocol (SMTP) - The web services data transfer is ready but will be fully function when the Web Service portal at FMCSA is operational

  • Certification Statement

    Thus far, Xpert ELD only supports detection of the mandatory malfunctions found in Table 4 of Appendix B in ‘The Final Rule with Technical Specifications’ posted on the FMCSA website: - Power Compliance Malfunction - Engine Synchronization Compliance Malfunction - Timing Compliance Malfunction - Positioning Compliance Malfunction - Data Recording Compliance Malfunction - Data Transfer Compliance Malfunction

User Manual: PDFXpertELD_manual.pdf
